Truespace Wall

Modular doors for healthcare environments

The first modular and reconfigurable medical wall system, designed to adapt over time.
With no mechanical fixings, it can be installed and modified with ease, evolving alongside spaces and clinical needs.


The system behind Wall

An engineered prefabricated approach to integrate design, systems, and technology into a single advanced architecture.

The TrueSpace Wall modular wall system consists of a highly engineered self-supporting galvanized steel substructure designed to accommodate interchangeable panels, available in multiple finishes.

The slotted design of the substructure allows gravity-based panel fixing without screws, ensuring a consistent joint of just 4 mm between panels.

A single substructure for all TrueSpace finishes

Consistent 4 mm spacing between panels

Gravity-based fixing system with no screws for faster installation

High precision for rapid and efficient installation

Strength and robustness even in the most demanding healthcare environments

Easily reconfigurable with minimal operational impact

Floating upper track to facilitate overhead systems installation

Integrated support for all mechanical, electrical and IT / AV services

Designed to integrate technology, building services and furnishings

The substructure can be pre-configured with dedicated supports, custom-designed for each piece of equipment, to integrate building services, technologies and furnishings precisely, safely and with easy access over time.


Systems and services

  • Dedicated modules for electrical systems and medical gases
  • Panel provisions for sockets, manifolds and third-party components

Technology and control

  • Provision for touch control panels
  • Provision for radiological viewers (X-Ray Viewer)
  • Provision for integrated monitors, with custom openings and gravity-based fixing

Doors and openings

  • Flush door frames for sliding and hinged doors
  • Integrated reinforcements for sliding doors

Sanitary fixtures and furnishings

  • Supports for surgical sinks and other sanitary fixtures
  • Building-services provisions within the panels
  • Flush-integrated wall furniture

A range of finishes within a single system

Tempered glass
DuPont Corian
Galvanised steel or stainless steel
HPL Laminate
Clear glass

Tempered glass

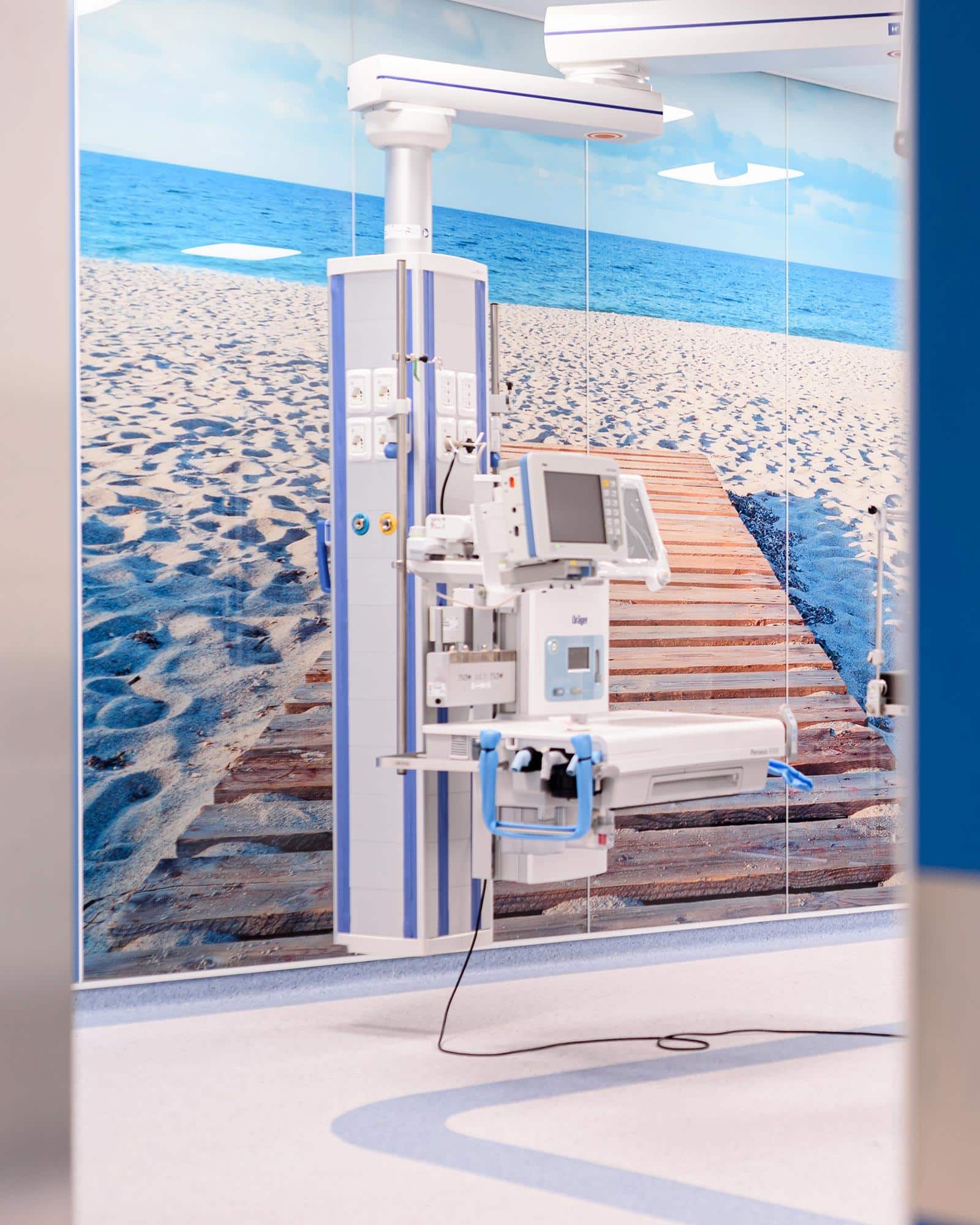

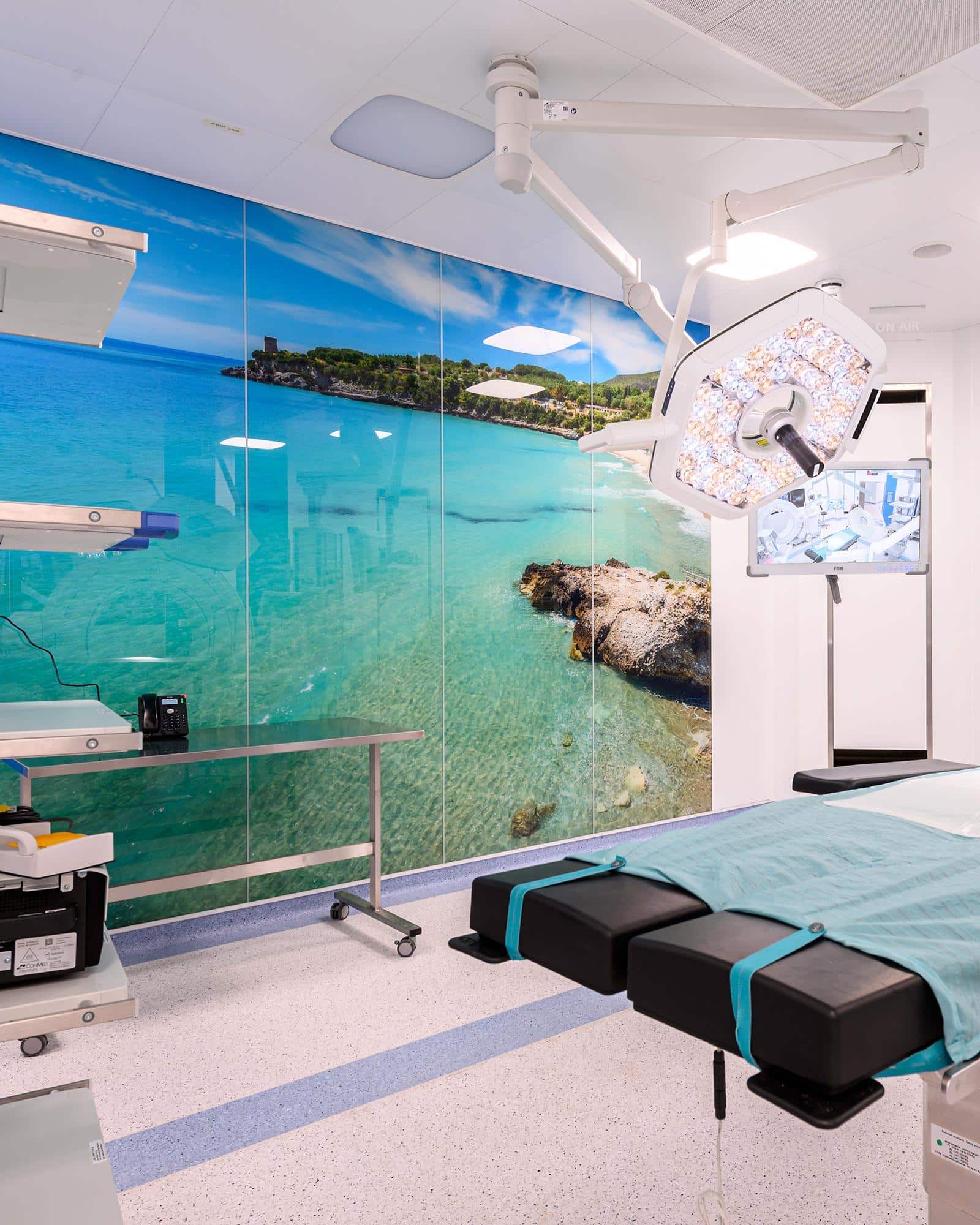

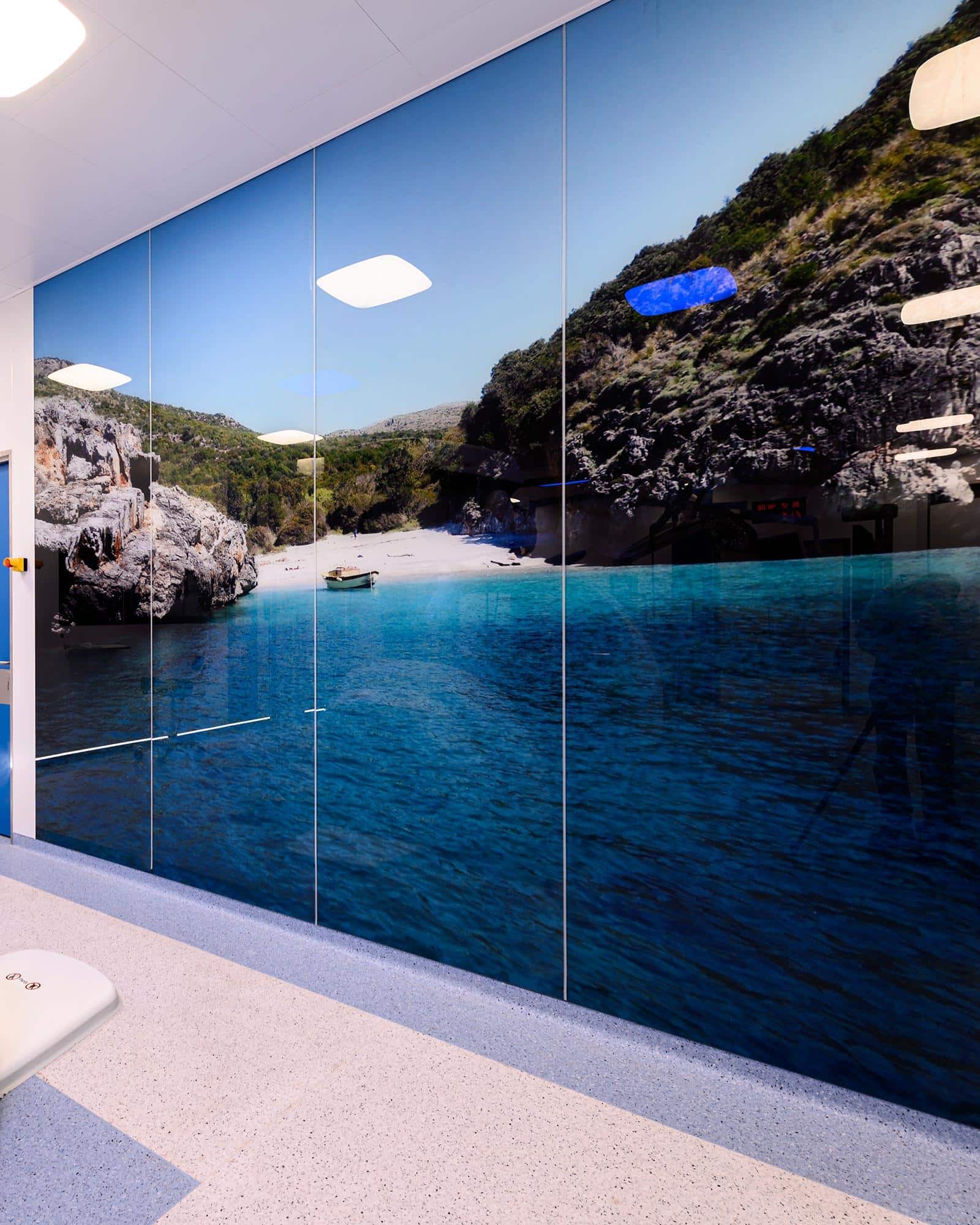

The TrueSpace wall panel in tempered safety glass is designed to enhance the aesthetics of operating rooms and clinical environments, while maintaining the highest standards of hygiene and safety.

A solution that combines continuous, luminous surfaces with high technical performance, ideal for both fully glazed environments and as an integrated architectural element within operating rooms featuring other finishes.

Request the Technical Data Sheet

Tempered glass

The TrueSpace wall panel in tempered safety glass is designed to enhance the aesthetics of operating rooms and clinical environments, while maintaining the highest standards of hygiene and safety.

A solution that combines continuous, luminous surfaces with high technical performance, ideal for both fully glazed environments and as an integrated architectural element within operating rooms featuring other finishes.

Request the Technical Data Sheet

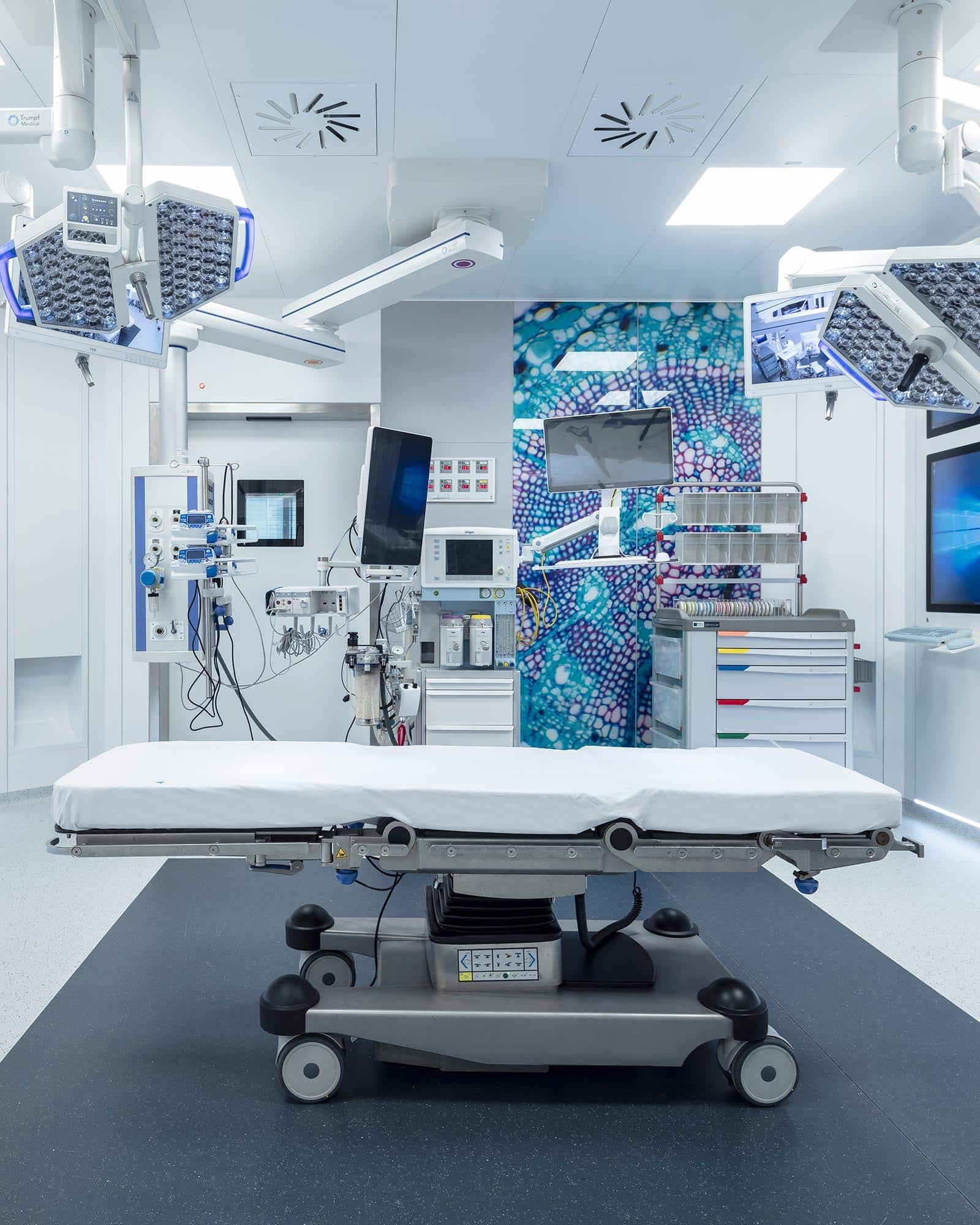

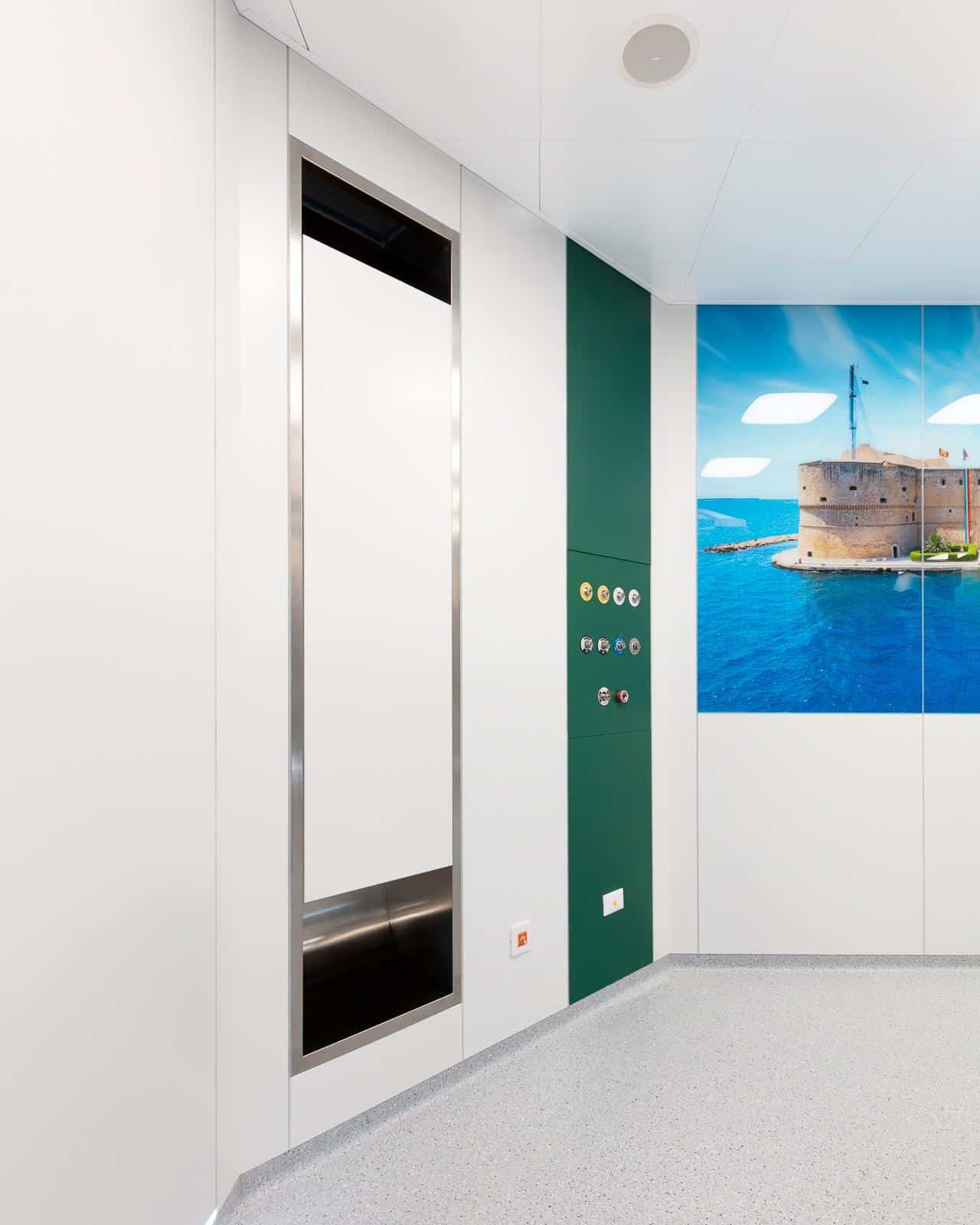

DuPont™ Corian®

The TrueSpace wall panel in DuPont™ Corian® combines top-level clinical performance with a refined, tactile aesthetic, creating operating theatres that are welcoming and highly impactful.

Its non-porous, ultra-smooth, antibacterial acrylic surface offers excellent durability even when exposed to aggressive chemical detergents, maintaining performance and finish over time.

Request the Technical Data Sheet

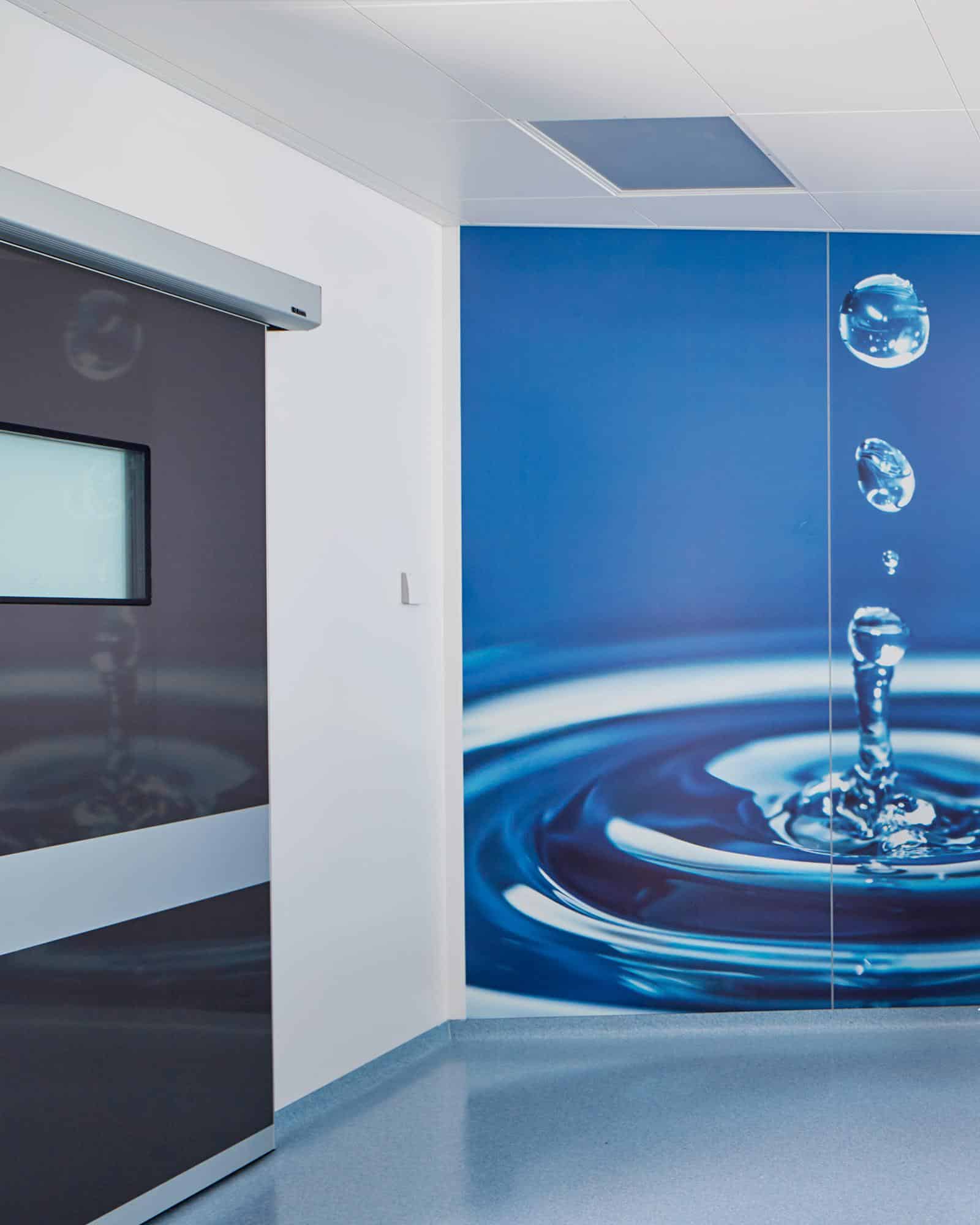

Galvanised steel or stainless steel

Ideal for critical clinical areas such as operating theatres and intensive care units, the TrueSpace steel wall panel ensures maximum safety, durability, and aesthetic continuity.

The galvanised or stainless steel surface, combined with a plasterboard backing, provides high fire and acoustic performance, even under intensive cleaning cycles.

Request the Technical Data Sheet

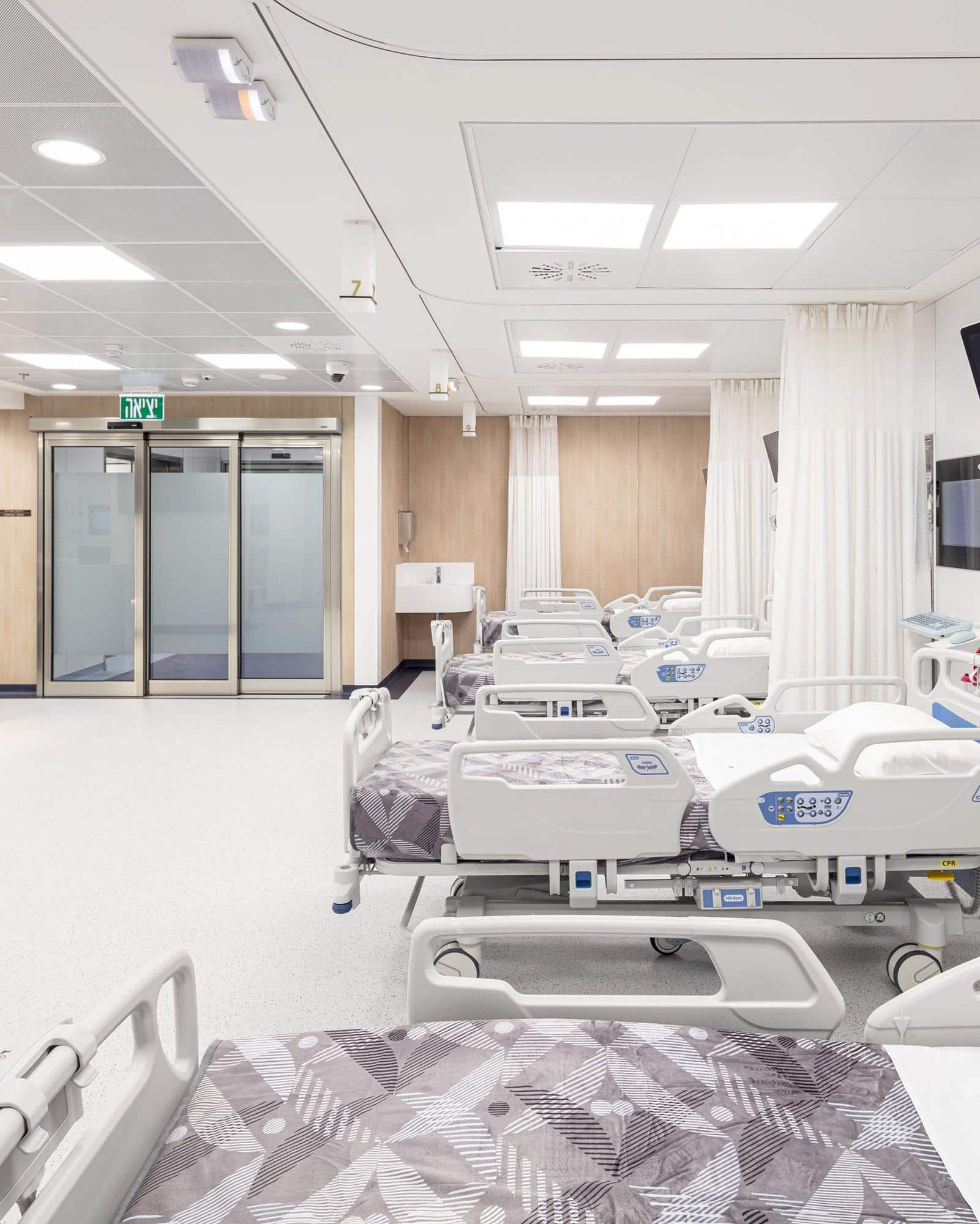

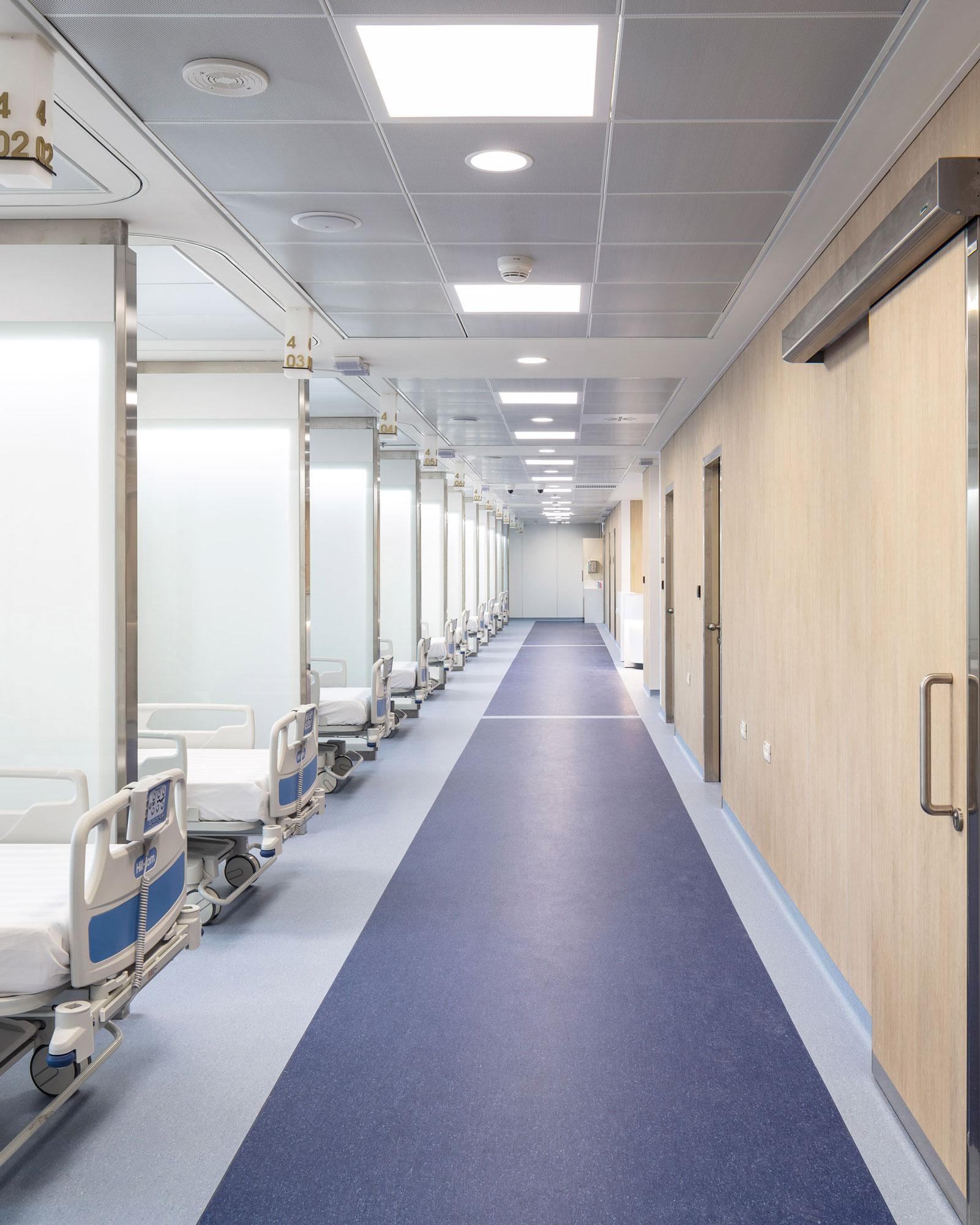

HPL (High Pressure Laminate) Compact

HPL is the ideal finish for environments where clinical risk is lower, but aesthetics and design flexibility play a central role.

A versatile solution that retains all the advantages of the TrueSpace modular system, offering wide creative freedom in healthcare and reception spaces.

Request the Technical Data Sheet

Transparent laminated safety glass

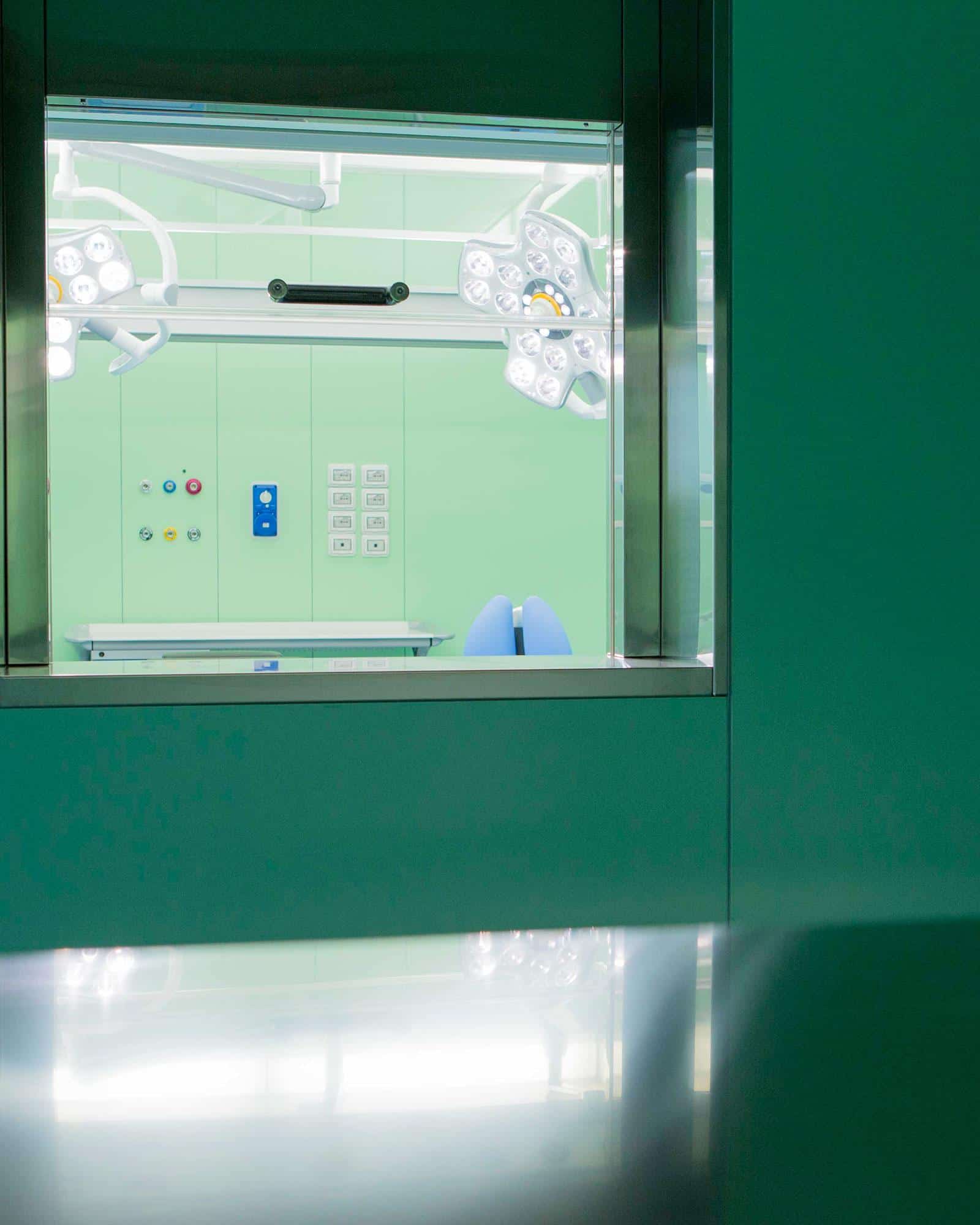

The TrueSpace wall panel in transparent laminated safety glass is designed to create observation windows and integrated glazed panels for operating theatres and clinical environments.

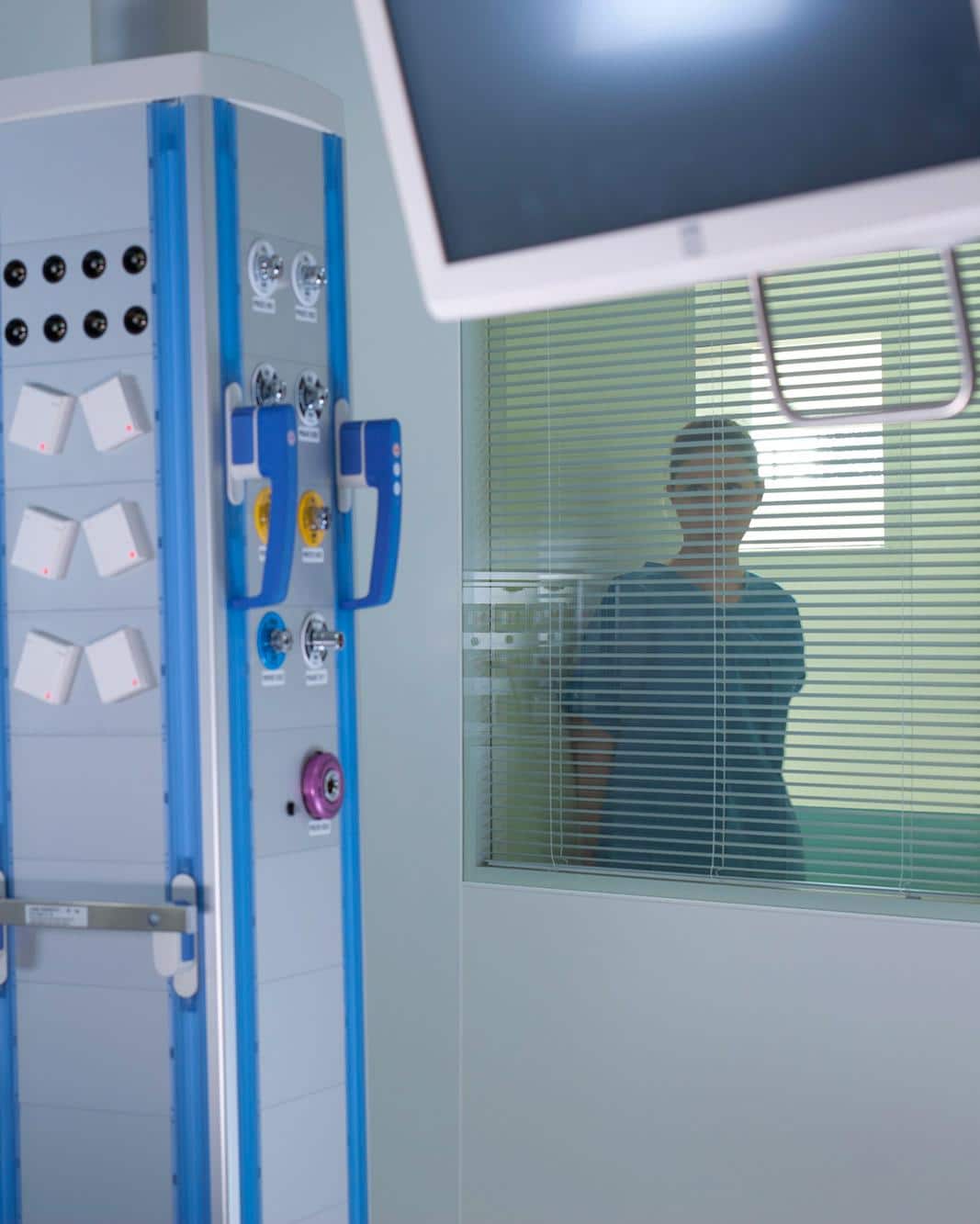

It enables visual control between adjacent spaces and is available with integrated manual or motorised blinds, as well as lead shielding options for specific applications.

Request the Technical Data Sheet

Truespace Wall:
a design tool that allows you
to shape light, material, and atmosphere.

RGB backlighting

Glass and Corian® panels can be backlit to create luminous surfaces integrated into the wall.
Light becomes part of the system, enhancing materials and volumes without compromising hygiene, continuity, or technical performance.

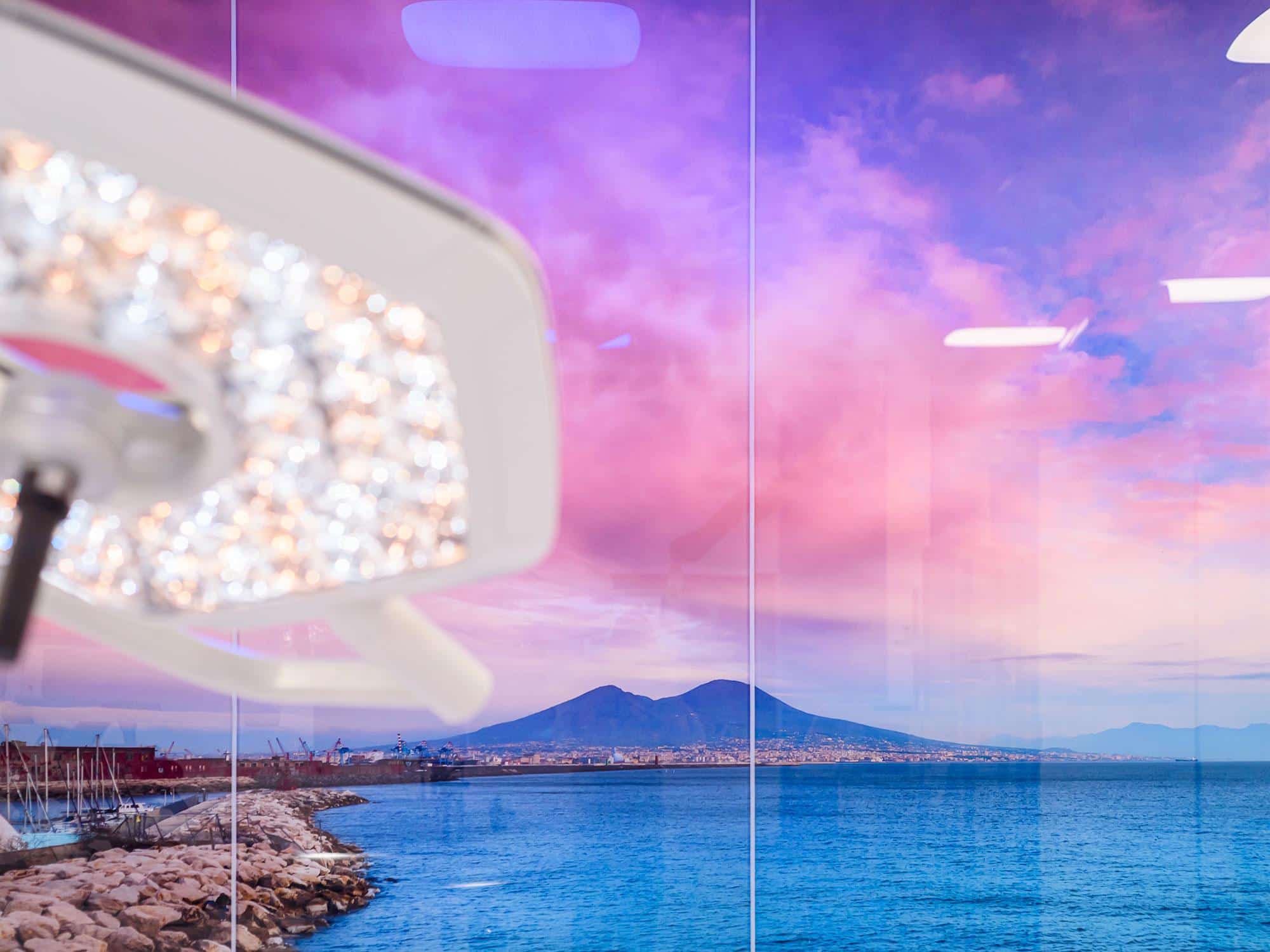

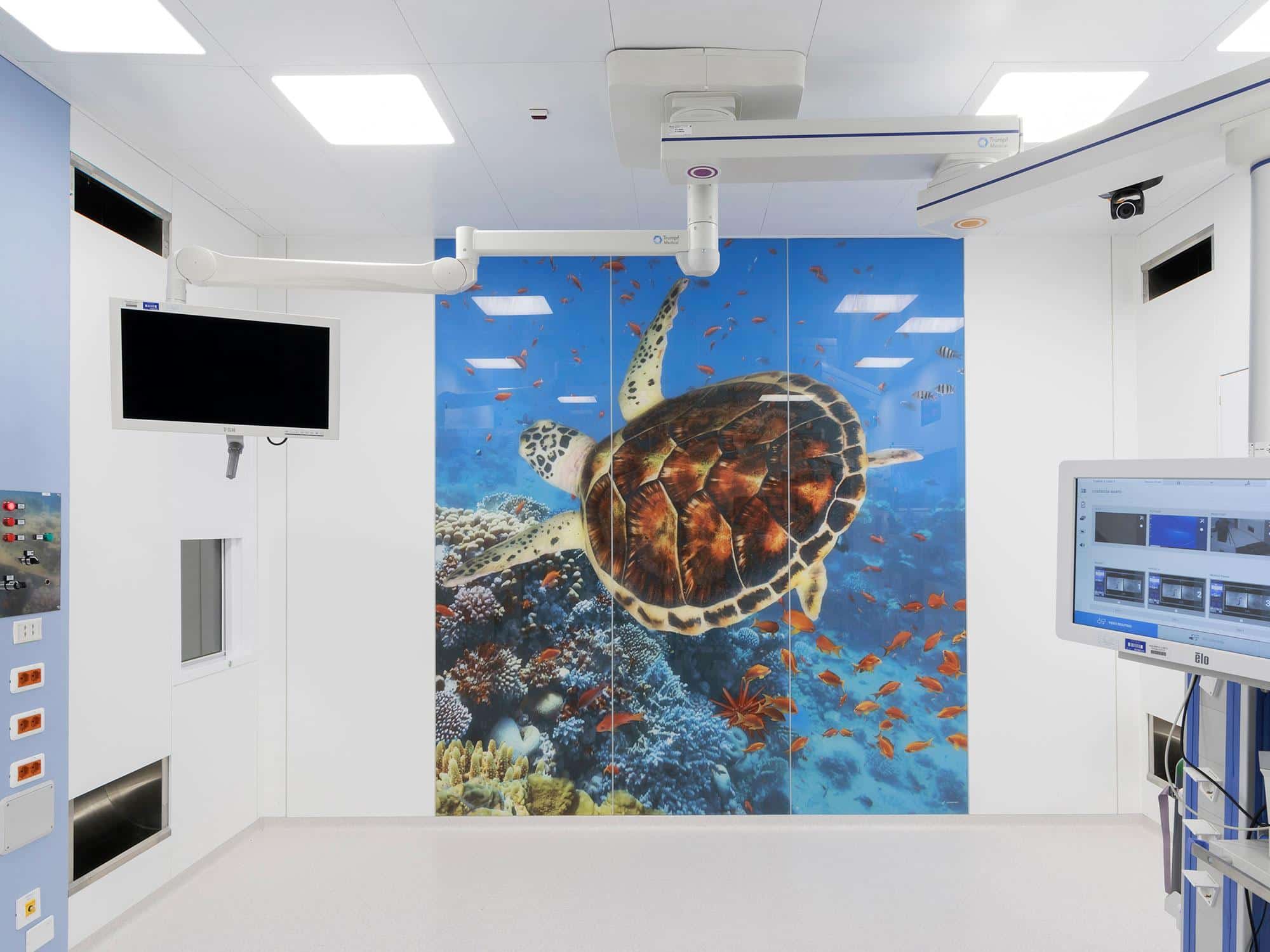

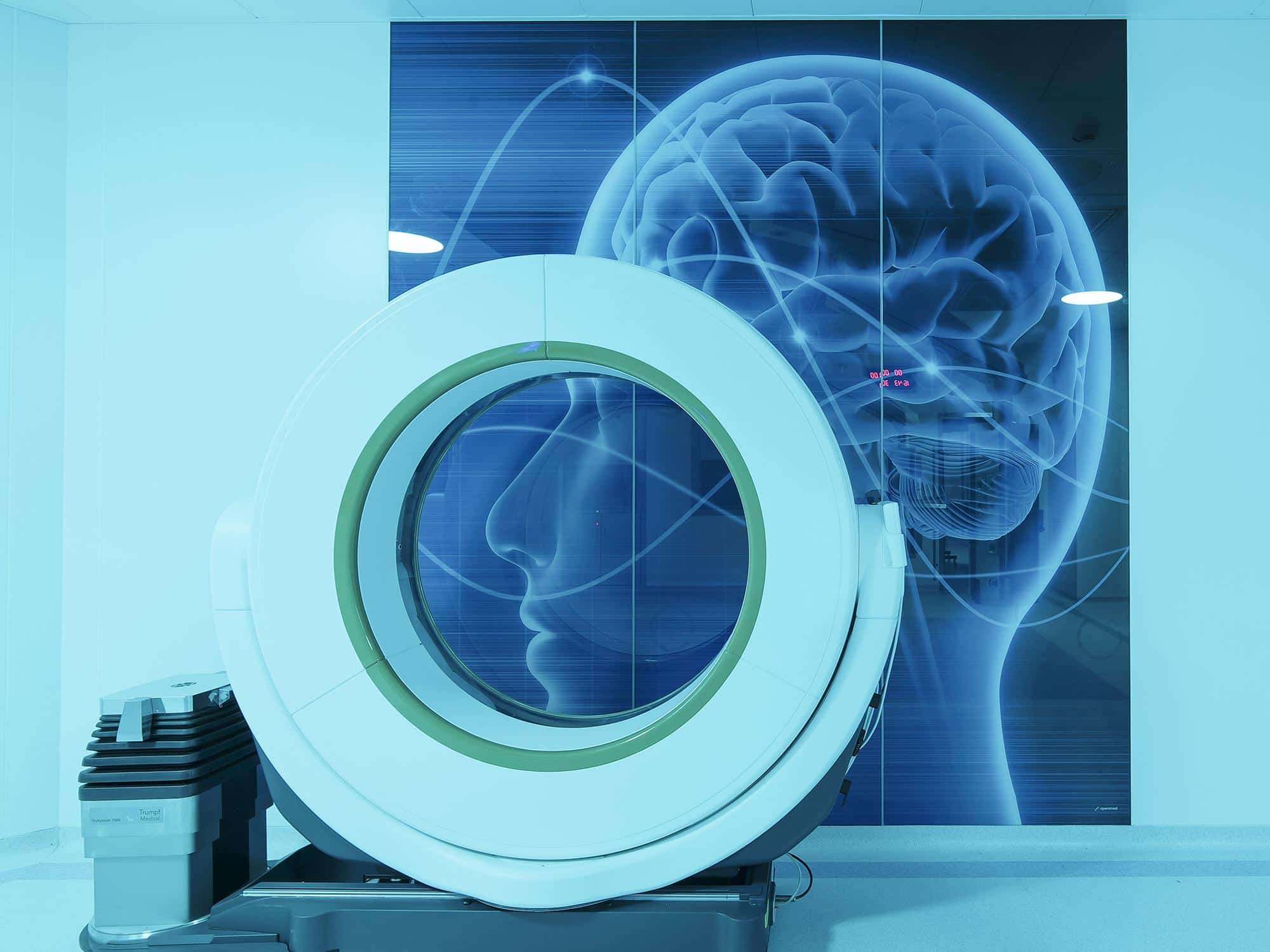

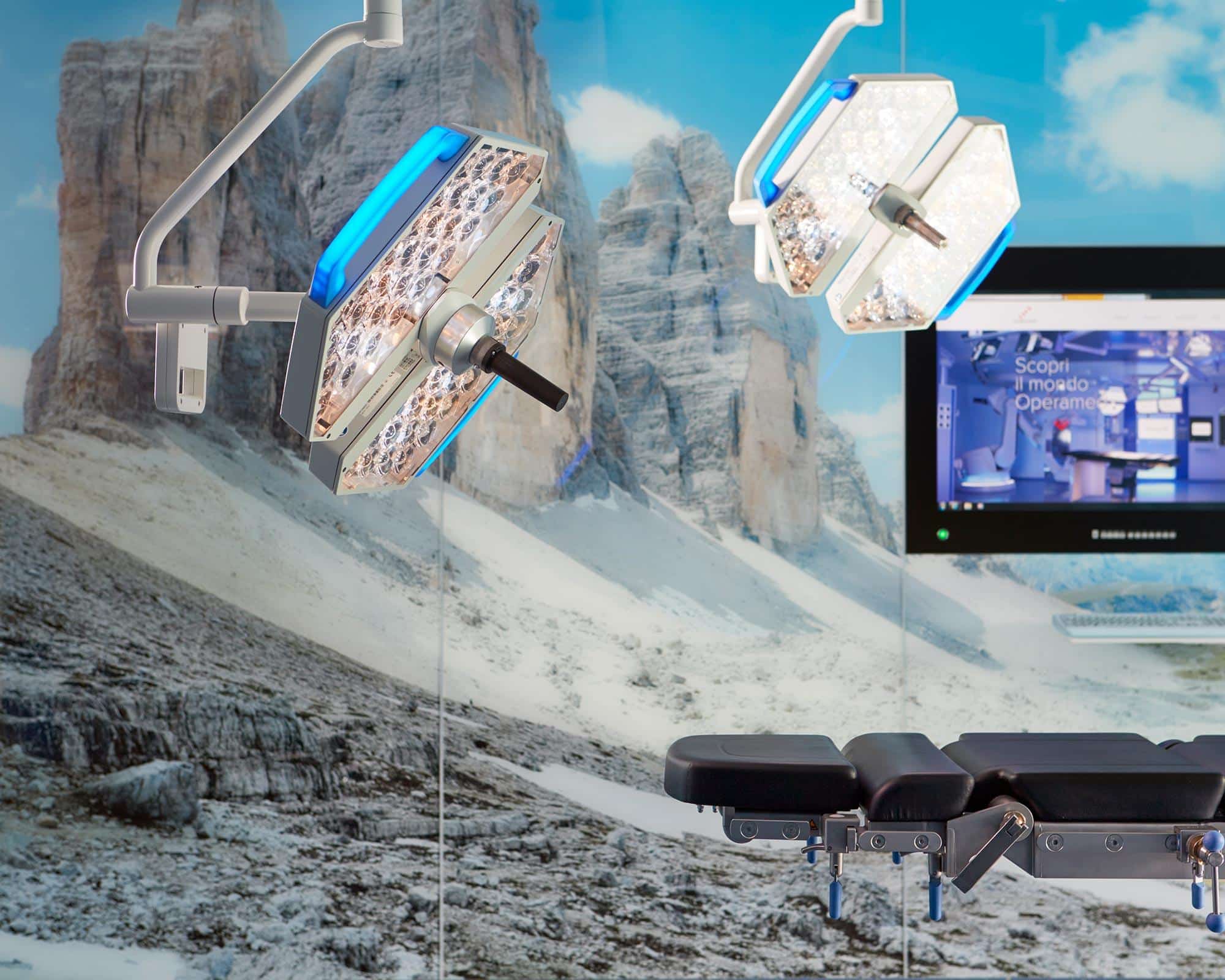

High-definition digital printing

High-definition digital printing allows images, textures, and graphics to be applied directly onto the panels, while maintaining seamless, flush surfaces.
An effective solution to define environments in a controlled way, consistent with the architectural design.

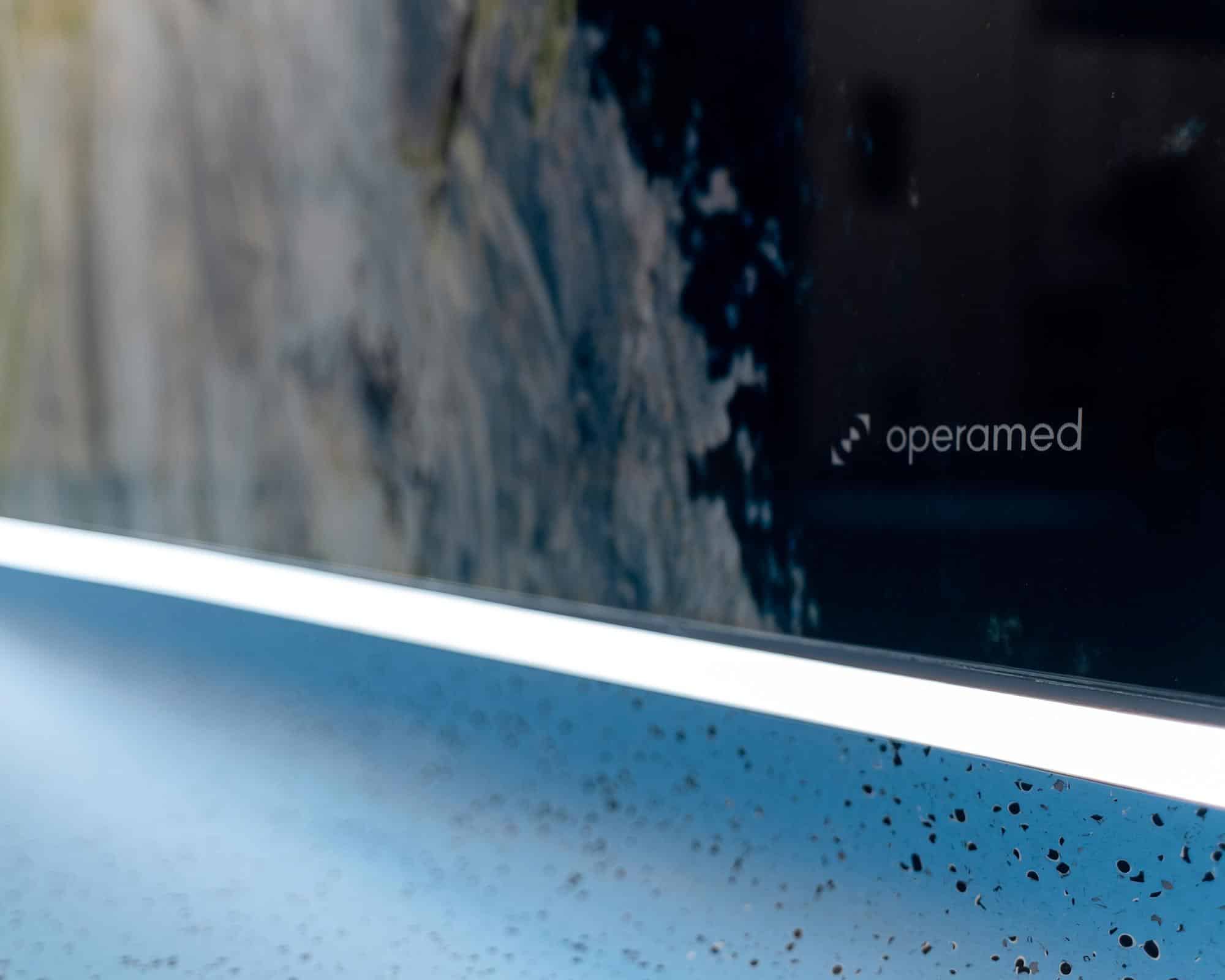

Integrated LED strips

Integrated LED strips at floor and ceiling level help define pathways, depth, and visual hierarchies within the space.
A clean, integrated solution designed to enhance the architecture without adding intrusive elements.


Integrated technical components

Air return modules

  • Custom-designed according to the room’s specific airflow rates.
  • Flush-mounted solutions with 45° angled panels to reduce turbulence and noise.
  • Inspectable and easily sanitised stainless steel air return units.
  • Aluminium grilles with magnetic fixing.

Gasket

  • Transparent or white silicone gasket, removable and airtight.
  • Hygienic continuity between panels and resistance to detergents and disinfectants used in hospital environments.

Radiation shielding

  • Integration of lead shielding for environments hosting radiological equipment or hybrid operating theatres.
  • Solutions include lead sheets, shielded glazing, and shielded doors.
  • They are developed according to the Healthcare Physicist’s specifications and integrated into the TrueSpace modular system.
